Product Details:
|
| Cutter Type: | Laser Cutter | Item: | Nano Tempered Glass Cutter |
|---|---|---|---|
| Usage: | Tempered Glass Screen Protector | Applicable Material: | Leather, Tpu, Plastic, Wood,pvc |
| Function: | Cutting Screen Protector | Name: | Screen Protector Laser Cutting Machine |
| Keyword: | Nano Tempered Glass Cutter | Format Supported: | AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP |
| Laser Head: | Raytools Cutting Head | Use: | PC / Notebook, Mobile Phone, Camera, Video Game Player, Smart Watch |

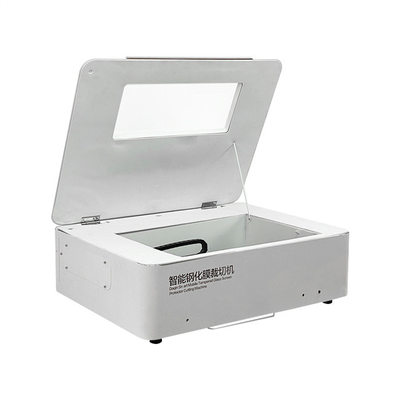

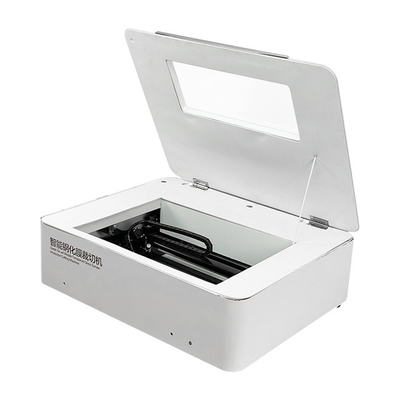

Introduction of Laser Cutter Machine For Applicable Material Acrylic/Leather/Plastic/Nano Tempered Glass cutter
Main Features for Nano Tempered Glass Cutter :
1.More Than 8000+ Cutting Templates for Mobile Phone Screen Protective Film.
2.Keep on Upgrading The Newest Templates.
3. Professional Templates Design Software.
4. Our machine is controlled by own design software
5. Software include the newest models of mobile phones and tablets and some other devices.
6. Free arrangement, automatic positioning, saving cutting material effectively.
7.Can add any phone models ,any sharp by yourself
8.Not only cut screen protector for Mobile phone.Tablet.Watch.Camera,but also for phone back skins protector
9. Machine Spares like Water pump, Air pump, exhaust fan all built -in side of the machine, save more space.

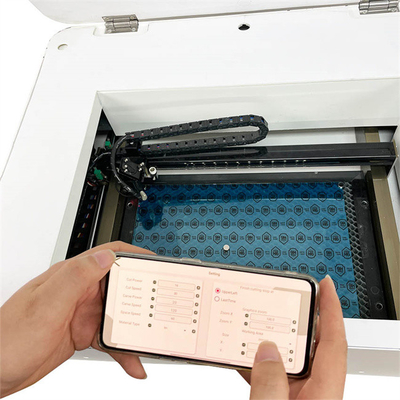

10. Multiple operation model: Smart phone App Wireless Operation + PC/ Tablet software Operation, more convenient !
Specification for Daqin Laser Cutter Machine For Applicable Material Acrylic/Leather/Plastic/Nano Tempered Glass cutter
| Specification of C188 Nano Tempered Glass Cutter | |||
| Laser Type | CO2( laser tube ) | Laser Power | 30W |
| Laser Power Supply | 40W | Air Pump (Built-in) | DC12V |
| Water Pump (Built-in) | DC24V | Exhaust Fan (Built-in) | DC12V 1.74A |
| Radiator | DC12V 0.20A | LED light | DC12V |
| Cooling Way | Circulating water cooling | Smoke Exhaust Way | Rear Exhanst |
| Driving Mode | 0.9°Stepper Motor | Transport Interface | USB Cable |
| Cutting Precision | ±0.01mm | Cutting Speed | 0-50mm/s |
| Operating Ambient Temperature | 5～45℃ | Power Supply | 110 V- 220V |
| Maximum Cut Area | 360x250mm | Machine Dimension | 710x570x235mm |
| Machine Weight | 27kg | Total Power | 700W |
| Packing Size | 87*72*35 CM ( 44kg ) | Total Packing Weight | 40 KG |
The maximum cutting area for Laser Cutter Machine For Applicable Material Acrylic/Leather/Plastic/Nano Tempered Glass cutter is 250mm*360mm.
You can cut screen protector for mobile, tablets, laptop, gaming, camera and so on.
Especially phone back skins. We support all kinds of nano glass, hydrogels (tpu soft film),
vinyls( phone back skin materials). You can also do engraving.
We have many kinds of materials of different quality, and prices.Don’t need to worry about the inventory any more,
You can cut according to customer need, cut at side for retail or wholesale.
The cutting is smooth without burrs.
All accessories( air pump,water pump, exhaust fan) all built-in , more neat and saves space.
We have professional tech team for templates making, accurate and various.
Support multiple templates cutting at the same time make cutting more efficient.
You can edit your own templates, such as templates for camera, car mirrors,UAV and so on.
The software includes nearly all mobile phone brands in markets
which supports update new models timely.
Advantages of Mobile Laser Cutter Machine For Applicable Material Acrylic/Leather/Plastic/Nano Tempered Glass cutter
1. Cutting all kinds of materials. Low investment suitable for small business.
2. Easy to operate, controlled by phone. Templates upgrade timely.
3. No worry about the inventory.Different models cut at the same time.No limit of MOQ.
4. Can cut mobile screen protector for the mobile phones, digital cameras, tablets,and PSP etc.
5. All kinds of Cutting materials available.
6.Edit software easily.
7.Mature machine , more accurate cutting.
Packing material for laser mobile screen protector cutting machine.
Wooden case and carton with foam inside so that machine is safe during shipping .
Company Profile
FAQ about Mobile Laser Cutter Machine For Applicable Material Acrylic/Leather/Plastic/Nano Tempered Glass cutter
How about the Warranty and Training for laser mobile screen protector cutting machine ?
* The warranty for the machine is 1 year.
* The machine has been tested by professionals and has 18 years of practical application.
It's with high stability and low fault rate.
* Detailed training video for the machine and software will be provided.
Professional after-sale service is available by remote assistance and video chatting.
The operation is easy to learn, everyone can be a master.
How about the delivery time and shipping way for Laser Cutter Machine For Applicable Material Acrylic/Leather/Plastic/Nano Tempered Glass cutter?
* Since the packing is with small volume and light weight,
usually the goods will be shipped by international express company, such as DHL, FEDX...
need about 2 days for preparing and packing the goods.
