Product Details:
|
| Cutter Type: | CO2 Laser Cutting Machine | Cutting Area: | 360*250 MM |
|---|---|---|---|
| Laser Type: | CO2 Laser Tube | Packing Size: | 85*70*43 CM |
| Applicable Material: | Nano Tempered Glass/wooden/Acrylic | Power Supply: | 110 V- 220V |
| Cooling System: | Water Cooling Built-in | Total Power: | 700W |
| Laser Power: | 40W | ||
| High Light: | 40w screen protector cutter machine,mobile daqin screen protector cutting machine,daqin screen protector cutter machine |
||
*Machine can cut Nano glass, hydrogel or vinyls for phone screen protector and phone back.
*If you have mobile phone shop, phone repair shop, phone accessory shop or start a new business,this is best for inbound marketing.
*If you have mobile phone shop, phone repair shop, phone accessory shop or start a new business,
this is best for inbound marketing. Best machine for lifelong using.
*The machine is constantly updated and developed the machine since 2002.
Specification for Glass Processing CO2 Laser Machine Flat Tempered Glass Cutting Machine
| Specification of C178 Laser cutting machine | |||
| Laser Type | CO2( laser tube ) | Laser Power | 40W |
| Laser Power Supply | 40W | Air Pump | DC12V |
| Water Pump (Built-in) | DC24V | Exhaust Fan | DC12V 1.74A |
| Radiator | DC12V 0.20A | LED light | DC12V |
| Cooling Way | Circulating water cooling | Smoke Exhaust | Rear Exhanst |
| Driving Mode | 0.9°Stepper Motor | Transport Interface | USB Cable |
| Cutting Precision | ±0.01mm | Cutting Speed | 0-200mm/s |
| Operating Ambient Temperature | 5～45℃ | Power Supply | 110 V- 220V |
| Maximum Cut Area | 400*400mm | Machine Dimension | 710*570*230 mm |
| Machine Weight | 75kg | Total Power | 700W |
| Packing Size | 85*70*43 CM | Total Packing Weight | 45 KG |

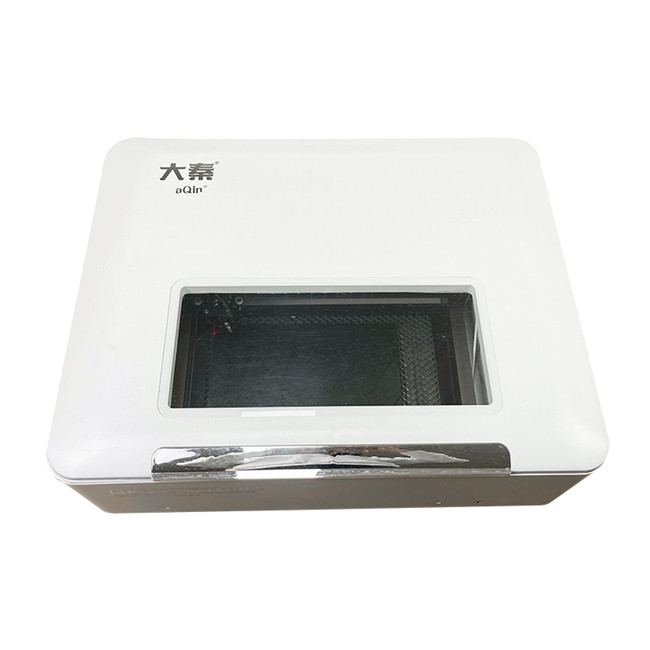

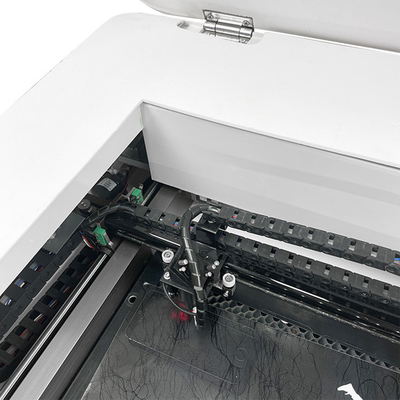

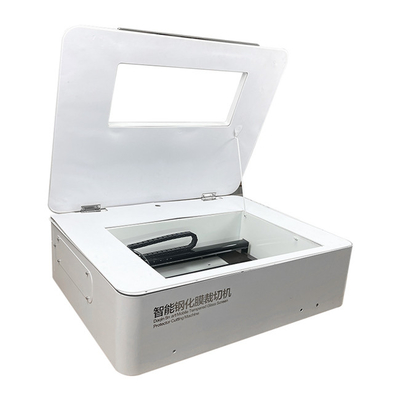

Machine Pictures:
Glass Processing CO2 Laser Machine Flat Tempered Glass Cutting Machine
Glass Processing CO2 Laser Machine Flat Tempered Glass Cutting Machine
1.The maximum cutting area is 250mm*360mm,
2.You can cut screen protector for mobile, tablets, laptop, gaming, camera and so on.
3.Especially phone back skins. We support all kinds of nano glass, hydrogels (tpu soft film),
vinyls( phone back skin materials).
4.You can also do engraving.
5.We have many kinds of materials of different quality, and prices.Don’t need to worry about the inventory any more,
You can cut according to customer need, cut at side for retail or wholesale.
6.The cutting is smooth without burrs.
7.All accessories( air pump,water pump, exhaust fan) all built-in , more neat and saves space.
8.We have professional tech team for templates making, accurate and various.
9.Support multiple templates cutting at the same time make cutting more efficient.
10.You can edit your own templates, such as templates for camera, car mirrors,UAV and so on.
11.The software includes nearly all mobile phone brands in markets which supports update new models timely.
Software of Machine:
Glass Processing CO2 Laser Machine Flat Tempered Glass Cutting Machine

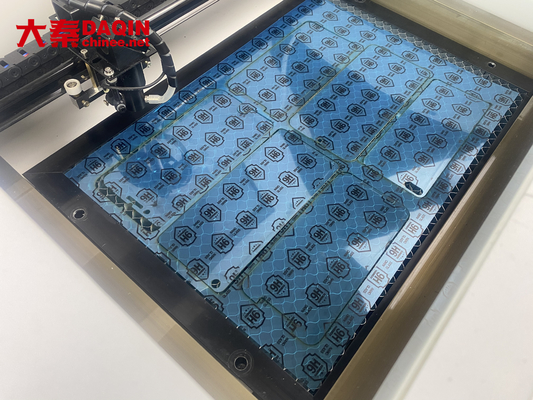

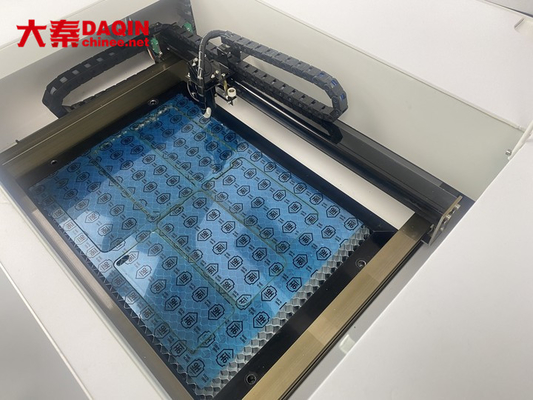

Raw Materials Sample Show:
Glass Processing CO2 Laser Machine Flat Tempered Glass Cutting Machine
Advantages of Glass Processing CO2 Laser Machine Flat Tempered Glass Cutting Machine:
1. Cutting all kinds of materials. Low investment suitable for small business.
2. Easy to operate, controlled by phone. Templates upgrade timely.
3. No worry about the inventory.Different models cut at the same time.
4. Can cut mobile screen protector for the mobile phones, digital cameras, tablets,and PSP etc.
5. All kinds of Cutting materials available.
6.Edit software easily.
Packing:
Glass Processing CO2 Laser Machine Flat Tempered Glass Cutting Machine
* Wooden case and carton with foam inside so that machine is safe during shipping .
FAQ:
How about the Warranty and Training for laser mobile screen protector cutting machine ?
* The warranty for the machine is 1 year.
How about the delivery time and shipping way for tempered glass cutting machine?
*such as DHL, FEDX...
Need about 2 days for preparing and packing the goods.
