Product Details:
|
| Cutter Type: | Laser Machine With CO2 Laser | Cutting Area: | 36*25 CM |
|---|---|---|---|
| Laser Type: | CO2 Laser / Water Cooling | Packing Size: | 870*720*350 Mm |
| Applicable Material: | Glass / PVC / PET / TPU And So On | Power Supply: | 110 V- 220V |
| Function: | Cutting And Engraving Business | Laser Power: | 50W |
| High Light: | 50w screen protector laser cutting machine,engraving screen protector laser cutting machine,engraving daqin tempered glass cutting machine |
||
*Machine can cut Nano glass, hydrogel or vinyls for phone screen protector and phone back.
*If you have mobile phone shop, phone repair shop, phone accessory shop or start a new business,this is best for inbound marketing.
*The machine is powerful and mature,we constantly updated and developed the machine since 2002.
*There are two software for machine , phone app and pcs software , both updating new models freely.
Specification for Daqin Mobile Phone 3d Tempered Glass Screen Protector Laser Cutting Machine
| Specification of C188 Laser cutting machine | |||
| Laser Type | CO2( laser tube ) | Laser Power | 30W |
| Laser Power Supply | 40W | Air Pump (Built-in) | DC12V |
| Water Pump (Built-in) | DC24V | Exhaust Fan (Built-in) | DC12V 1.74A |
| Cooling Way | Circulating water cooling | Smoke Exhaust Way | Rear Exhanst |
| Driving Mode | 0.9°Stepper Motor | Transport Interface | USB Cable |
| Cutting Precision | ±0.01mm | Cutting Speed | 0-50mm/s |
| Maximum Cut Area | 360x250mm | Machine Dimension | 710x570x235mm |
| Machine Weight | 27kg | Total Power | 700W |
| Packing Size | 87*72*35 CM ( 44kg ) | Total Packing Weight | 40 KG |

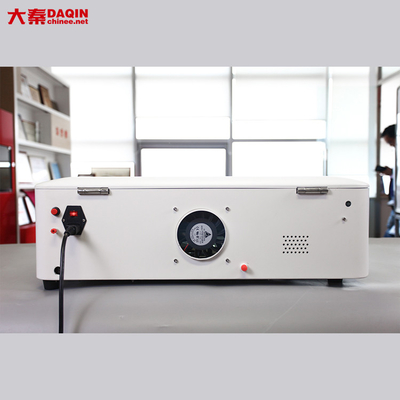

Machine Pictures:

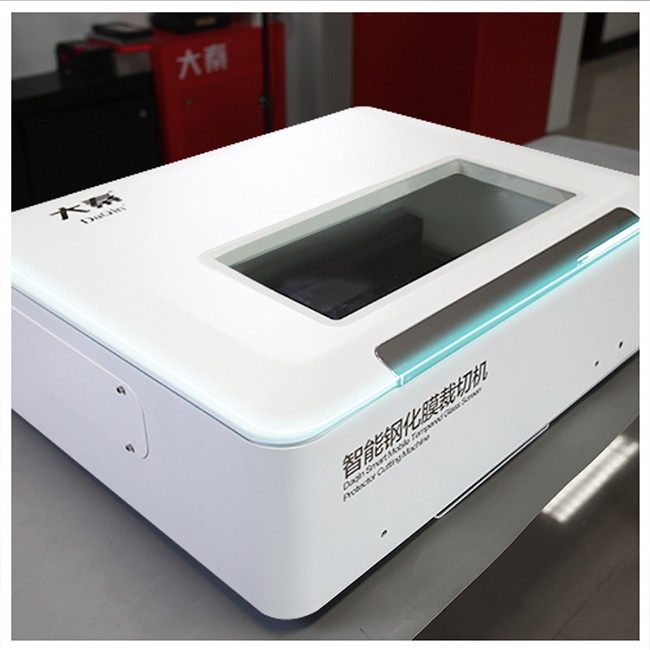

Daqin Mobile Phone 3d Tempered Glass Screen Protector Laser Cutting Machine

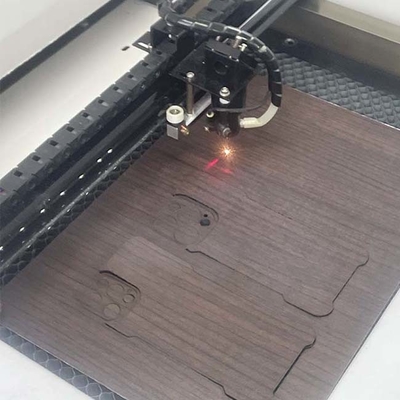

Daqin Nano Tempered Glass Screen Protector Laser Cutting Machine With Engraving Function
1.The maximum cutting area is 250mm*360mm, big size for bulk production.
2.You can cut screen protector for mobile, tablets, laptop, gaming, camera and so on.

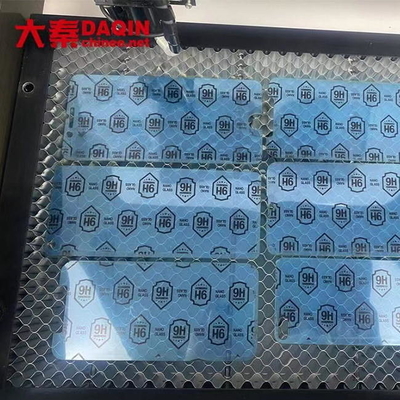

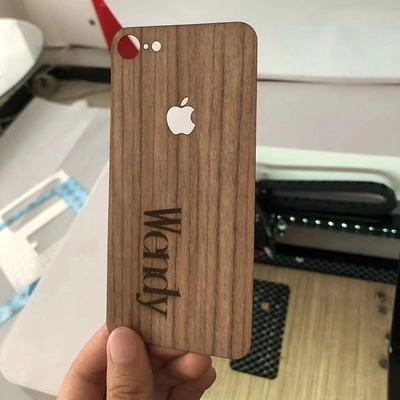

3.Especially phone back skins. We support all kinds of nano glass, hydrogels (tpu soft film),vinyls( phone back skin materials).
4.Also can do engraving business if you need.
5.We have many kinds of materials of different quality, and prices.
Software:
MATERIALS:
Advantages:
1. Cutting all kinds of materials. Low investment suitable for small business.
2. Easy to operate, controlled by phone. Templates upgrade timely.
3. No worry about the inventory.Different models cut at the same time.No limit of MOQ.
4. Can cut mobile screen protector for the mobile phones, digital cameras, tablets,and PSP etc.
5. All kinds of Cutting materials available.
6.Edit software easily.
7.Mature machine , more accurate cutting.
Packing:
* Wooden case and carton with foam inside so that machine is safe during shipping .
Daqin Mobile Phone 3d Tempered Glass Screen Protector Laser Cutting Machine
FAQ:
How about the Warranty and Training for laser mobile screen protector cutting machine ?
* The warranty for the machine is 1 year.
* The machine has been tested by professionals and has 18 years of practical application.
It's with high stability and low fault rate.
* Detailed training video for the machine and software will be provided.
Professional after-sale service is available by remote assistance and video chatting.
The operation is easy to learn, everyone can be a master.
