700w Daqin Screen Protector Laser Cutting Machine For Mobile Phone 3d Tempered Glass

Certification
China Beijing Daqin New Universe Electronic Co., Ltd. certification
China Beijing Daqin New Universe Electronic Co., Ltd. certification
Customer Reviews
“Tengo una tienda vendiendo el teléfono móvil “XIAOMI”. Cuando voy a atender la exhibición Spring Electricity en Hong Kong. Encontré DAQIN. Después de cooperar con DAQIN en carcasas personalizadas, las ventas de teléfonos móviles continúan creciendo. Me he convertido en el proveedor de mi negocio local.”

—— Tag

I am a fashion bloggers, Under the support of DAQIN team , I can make my own design according to each set of clothes. And my “Clothes mobile phone case” became another popular view and on hot selling with my designs. My fans has increased 10,000 after that.

—— Peter

I have physical shop and online platforms too in our country ,Bought daqin mobile skin making software and laser glass screen protector cutting machine from 2016 year,daqin product and company is helpfull for my business !!

—— Shahbaz

I'm Online Chat Now

700w Daqin Screen Protector Laser Cutting Machine For Mobile Phone 3d Tempered Glass

700w Daqin Screen Protector Laser Cutting Machine For Mobile Phone 3d Tempered Glass
700w Daqin Screen Protector Laser Cutting Machine For Mobile Phone 3d Tempered Glass
700w Daqin Screen Protector Laser Cutting Machine For Mobile Phone 3d Tempered Glass 700w Daqin Screen Protector Laser Cutting Machine For Mobile Phone 3d Tempered Glass 700w Daqin Screen Protector Laser Cutting Machine For Mobile Phone 3d Tempered Glass 700w Daqin Screen Protector Laser Cutting Machine For Mobile Phone 3d Tempered Glass

Large Image :  700w Daqin Screen Protector Laser Cutting Machine For Mobile Phone 3d Tempered Glass

Product Details:
Place of Origin: China
Brand Name: DAQIN
Certification: CE ,GSG, ISO, GS
Model Number: C188
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD 680 - 1080 per Set
Packaging Details: Wood package
Delivery Time: 2-10 days
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 800 sets per month

700w Daqin Screen Protector Laser Cutting Machine For Mobile Phone 3d Tempered Glass

Description
Cutter Type: CO2 Nano Tempered Glass Cutting Machine Cutting Area: 250*360 MM
Laser Type: CO2 Laser Tube Packing Size: 87*72*35 CM
Applicable Material: Nano Tempered Glass / Pet / Tpu Format Supported: AI, PLT, DXF
Power Supply: 110 V- 220V Language: Chinese/English
Total Power: 700W Laser Power: 30W
High Light:

700w screen protector laser cutting machine

,

3d screen protector laser cutting machine

,

3d daqin laser cutting machine

Daqin Mobile Phone 3d Tempered Glass Screen Protector Laser Cutting Machine

Introduction of Daqin Mobile tempered glass screen protector Laser Cutting Machine :



*Machine can cut Nano glass, hydrogel or vinyls for phone screen protector and phone back.

*If you have mobile phone shop, phone repair shop, phone accessory shop or start a new business,this is best for inbound marketing.

*The machine is powerful and mature,we constantly updated and developed the machine since 2002.

*The Bluetooth version is latest version.



Specification for Daqin Mobile Phone 3d Tempered Glass Screen Protector Laser Cutting Machine

                                               Specification of C188 Laser cutting machine
Laser Type CO2( laser tube ) Laser Power 30W
Laser Power Supply 40W Air Pump (Built-in) DC12V
Water Pump (Built-in) DC24V Exhaust Fan (Built-in) DC12V 1.74A
Radiator DC12V 0.20A LED light DC12V
Cooling Way Circulating water cooling Smoke Exhaust Way Rear Exhanst
Driving Mode 0.9°Stepper Motor Transport Interface USB Cable
Cutting Precision ±0.01mm Cutting Speed 0-50mm/s
Operating Ambient Temperature 5~45℃ Power Supply 110 V- 220V
Maximum Cut Area 360x250mm Machine Dimension 710x570x235mm
Machine Weight 27kg Total Power 700W
Packing Size 87*72*35 CM ( 44kg ) Total Packing Weight 40 KG

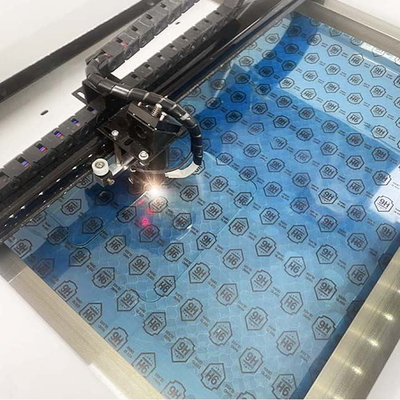

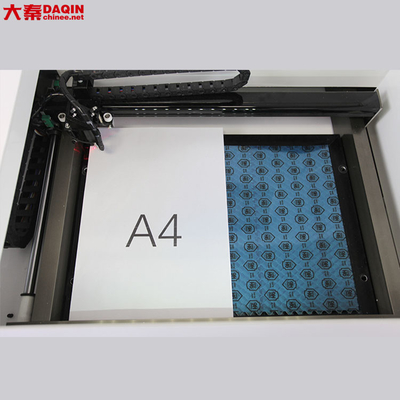

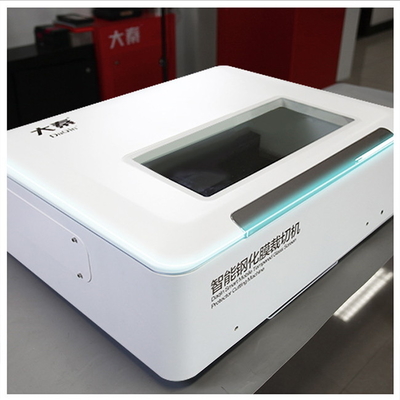

Machine Pictures:

Daqin Mobile Phone 3d Tempered Glass Screen Protector Laser Cutting Machine

700w Daqin Screen Protector Laser Cutting Machine For Mobile Phone 3d Tempered Glass 0

700w Daqin Screen Protector Laser Cutting Machine For Mobile Phone 3d Tempered Glass 1

700w Daqin Screen Protector Laser Cutting Machine For Mobile Phone 3d Tempered Glass 2

Daqin Mobile Phone 3d Tempered Glass Screen Protector Laser Cutting Machine



1.The maximum cutting area is 250mm*360mm,

2.You can cut screen protector for mobile, tablets, laptop, gaming, camera and so on.

3.Especially phone back skins. We support all kinds of nano glass, hydrogels (tpu soft film),vinyls( phone back skin materials).

4.You can also do engraving.

5.We have many kinds of materials of different quality, and prices.

6.The cutting is smooth without burrs.

7.All accessories( air pump,water pump, exhaust fan) all built-in , more neat and saves space.



Software:

700w Daqin Screen Protector Laser Cutting Machine For Mobile Phone 3d Tempered Glass 3

MATERIALS:

700w Daqin Screen Protector Laser Cutting Machine For Mobile Phone 3d Tempered Glass 4

700w Daqin Screen Protector Laser Cutting Machine For Mobile Phone 3d Tempered Glass 5

700w Daqin Screen Protector Laser Cutting Machine For Mobile Phone 3d Tempered Glass 6

Advantages:

1. Cutting all kinds of materials. Low investment suitable for small business.

2. Easy to operate, controlled by phone. Templates upgrade timely.

3. No worry about the inventory.Different models cut at the same time.No limit of MOQ.

4. Can cut mobile screen protector for the mobile phones, digital cameras, tablets,and PSP etc.

5. All kinds of Cutting materials available.

6.Edit software easily.

7.Mature machine , more accurate cutting.



Packing:

* Wooden case and carton with foam inside so that machine is safe during shipping .

Daqin Mobile Phone 3d Tempered Glass Screen Protector Laser Cutting Machine

700w Daqin Screen Protector Laser Cutting Machine For Mobile Phone 3d Tempered Glass 7



FAQ:

How about the Warranty and Training for laser mobile screen protector cutting machine ?

* The warranty for the machine is 1 year.
* The machine has been tested by professionals and has 18 years of practical application.

It's with high stability and low fault rate.
* Detailed training video for the machine and software will be provided.

Professional after-sale service is available by remote assistance and video chatting.

The operation is easy to learn, everyone can be a master.
