Product Details:
|
| Cutter Type: | Laser Cutter | Cutting Area: | 25*36 CM |
|---|---|---|---|
| Laser Type: | CO2 | Packing Size: | 87*72*35 CM |
| Applicable Material: | Leather, Tpu, Plastic, Wood,pvc | Format Supported: | AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP |
| Power Supply: | 110 V- 220V | Language: | English |
| Total Power: | 700W | Laser Power: | 30W |
| High Light: | CO2 Screen Protector Laser Cutting Machine,Leather Screen Protector Laser Cutting Machine,High Speed Daqin Laser Cutting Machine |
||

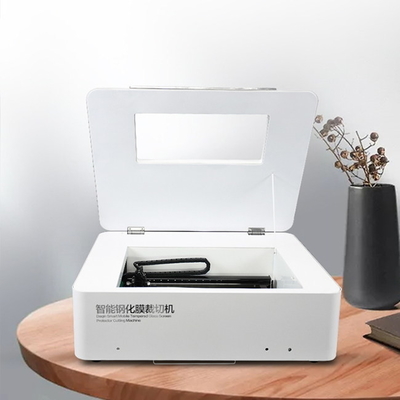

High Speed CO2 Screen Protector Laser Cutting Machine For Nano Tempered Glass
*Machine can cut Nano glass, hydrogel or vinyls for phone screen protector and phone back.It can be controlled by mobile phone directly.
*If you have mobile phone shop, phone repair shop, phone accessory shop or start a new business,this is best for inbound marketing.
*If you have mobile phone shop, phone repair shop, phone accessory shop or start a new business,
this is best for inbound marketing. Best machine for lifelong using.
*The machine is powerful and mature,we constantly updated and developed the machine since 2002.
*The Bluetooth version is latest version.
Specification for High Speed CO2 Screen Protector Laser Cutting Machine For Nano Tempered Glass
| Specification of C188 Laser cutting machine | |||
| Laser Type | CO2( laser tube ) | Laser Power | 30W |
| Laser Power Supply | 40W | Air Pump (Built-in) | DC12V |
| Water Pump (Built-in) | DC24V | Exhaust Fan (Built-in) | DC12V 1.74A |
| Radiator | DC12V 0.20A | LED light | DC12V |
| Cooling Way | Circulating water cooling | Smoke Exhaust Way | Rear Exhanst |
| Driving Mode | 0.9°Stepper Motor | Transport Interface | USB Cable |
| Cutting Precision | ±0.01mm | Cutting Speed | 0-50mm/s |
| Operating Ambient Temperature | 5～45℃ | Power Supply | 110 V- 220V |
| Maximum Cut Area | 360x250mm | Machine Dimension | 710x570x235mm |
| Machine Weight | 27kg | Total Power | 700W |
| Packing Size | 87*72*35 CM ( 44kg ) | Total Packing Weight | 40 KG |
High Speed CO2 Screen Protector Laser Cutting Machine For Nano Tempered Glass

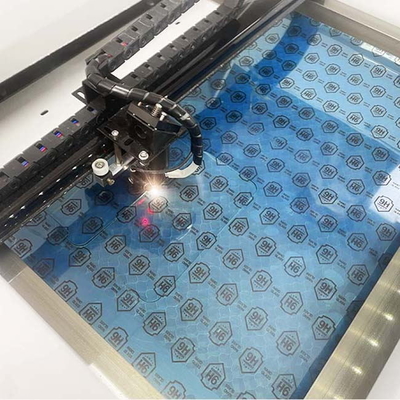

1.The maximum cutting area is 250mm*360mm,
2.You can cut screen protector for mobile, tablets, laptop, gaming, camera and so on.

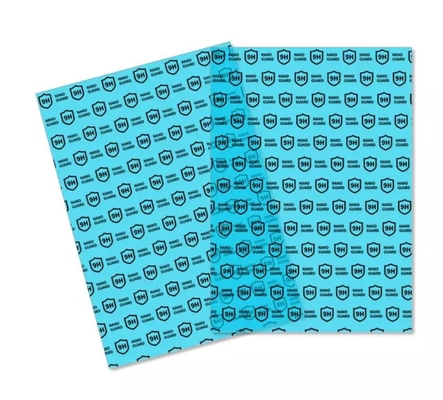

3.Especially phone back skins. We support all kinds of nano glass, hydrogels (tpu soft film),vinyls( phone back skin materials).

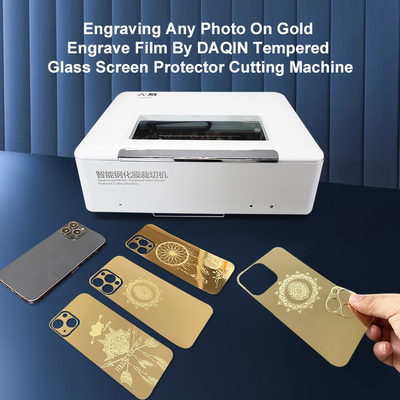

4.You can also do engraving.
5.We have many kinds of materials of different quality, and prices.Don’t need to worry about the inventory any more,You can cut according to customer need, cut at side for retail or wholesale.
6.The cutting is smooth without burrs.
7.All accessories( air pump,water pump, exhaust fan) all built-in , more neat and saves space.
8.We have professional tech team for templates making, accurate and various.
9.Support multiple templates cutting at the same time make cutting more efficient.
10.You can edit your own templates, such as templates for camera, car mirrors,UAV and so on.
11.The software includes nearly all mobile phone brands in markets which supports update new models timely.
Advantages of High Speed CO2 Screen Protector Laser Cutting Machine For Nano Tempered Glass :
1. Cutting all kinds of materials. Low investment suitable for small business.
2. Easy to operate, controlled by phone. Templates upgrade timely.
3. No worry about the inventory.Different models cut at the same time.No limit of MOQ.
4. Can cut mobile screen protector for the mobile phones, digital cameras, tablets,and PSP etc.
5. All kinds of Cutting materials available.
6.Edit software easily.
7.Mature machine , more accurate cutting.
Packing material for High Speed CO2 Screen Protector Laser Cutting Machine For Nano Tempered Glass
* Wooden case and carton with foam inside so that machine is safe during shipping .
High Speed CO2 Screen Protector Laser Cutting Machine For Nano Tempered Glass
FAQ about High Speed CO2 Screen Protector Laser Cutting Machine For Nano Tempered Glass
How about the Warranty and Training for laser mobile screen protector cutting machine ?
* The warranty for the machine is 1 year.
* The machine has been tested by professionals and has 18 years of practical application.
It's with high stability and low fault rate.
* Detailed training video for the machine and software will be provided.
Professional after-sale service is available by remote assistance and video chatting.
The operation is easy to learn, everyone can be a master.
How about the delivery time and shipping way for tempered glass cutting machine?
* Since the packing is with small volume and light weight,
usually the goods will be shipped by international express company, such as DHL, FEDX...
need about 2 days for preparing and packing the goods.
