Product Details:
|
| Name: | Mobile Tempered Glass Laptop Stickers Cutting Machine | Keyword: | Tempered Vinyl Stickers Machine |
|---|---|---|---|
| Item: | Mobile Protector Cutter | Cutter Type: | Laser, CO2 Water Cooling |
| Cutting Area: | 250*360 MM | Control Software: | Daqin Laser Cut Software |
| Applicable Industries: | Repair Shops, Retail Shop, Online Store | Weight: | 30KG |
| Usage: | Tempered Glass Screen Protector | Applicable Material: | Leather, Tpu, Plastic, Wood, Pvc |
| Highlight: | gsg screen protector laser cutting machine,watercooled screen protector laser cutting machine,water cooling daqin laser cutting machine |
||

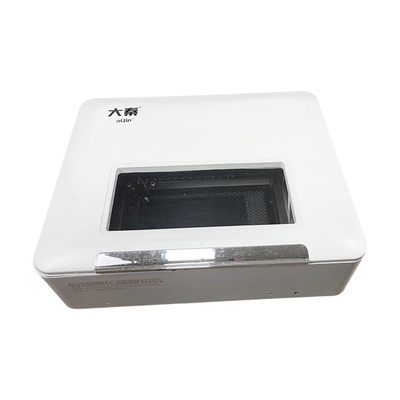

Daqin Bluetooth screen protector laser cutting machine includes professional design software and laser cutter.
You can cut Nano glass, hydrogel or vinyls for phone screen protector and phone back.It can be controlled by mobile phone directly.
If you have mobile phone shop, phone repair shop, phone accessory shop or start a new business, this is best for inbound marketing. Best machine for lifelong using.
If you have mobile phone shop, phone repair shop, phone accessory shop or start a new business, this is best for inbound marketing. Best machine for lifelong using.
The machine is powerful and mature, we constantly updated and developed the machine since 2002.
The Bluetooth version is latest version.
Specification for Daqin Mobile tempered glass screen protector Laser Cutting Machine
| Specification of C188 Laser cutting machine | |||
| Laser Type | CO2( laser tube ) | Laser Power | 30W |
| Laser Power Supply | 40W | Air Pump (Built-in) | DC12V |
| Water Pump (Built-in) | DC24V | Exhaust Fan (Built-in) | DC12V 1.74A |
| Radiator | DC12V 0.20A | LED light | DC12V |
| Cooling Way | Circulating water cooling | Smoke Exhaust Way | Rear Exhanst |
| Driving Mode | 0.9°Stepper Motor | Transport Interface | USB Cable |
| Cutting Precision | ±0.01mm | Cutting Speed | 0-50mm/s |
| Operating Ambient Temperature | 5～45℃ | Power Supply | 110 V- 220V |
| Maximum Cut Area | 360x250mm | Machine Dimension | 710x570x235mm |
| Machine Weight | 27kg | Total Power | 700W |
| Packing Size | 87*72*35 CM ( 44kg ) | Total Packing Weight | 40 KG |

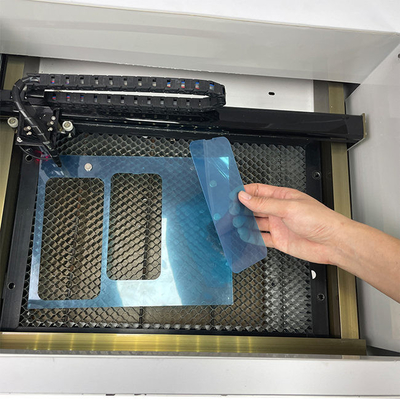

The maximum cutting area is 250mm*360mm,
You can cut screen protector for mobile, tablets, laptop, gaming, camera and so on.
Especially phone back skins. We support all kinds of nano glass, hydrogels (tpu soft film),
vinyls( phone back skin materials). You can also do engraving.
We have many kinds of materials of different quality, and prices.Don’t need to worry about the inventory any more,
You can cut according to customer need, cut at side for retail or wholesale.
The cutting is smooth without burrs.

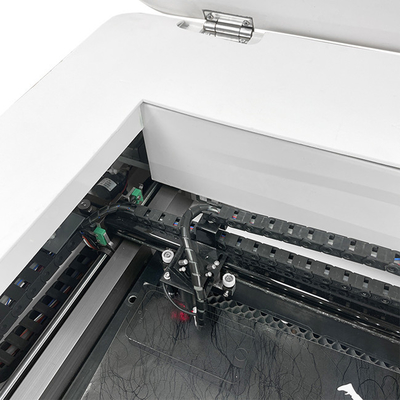

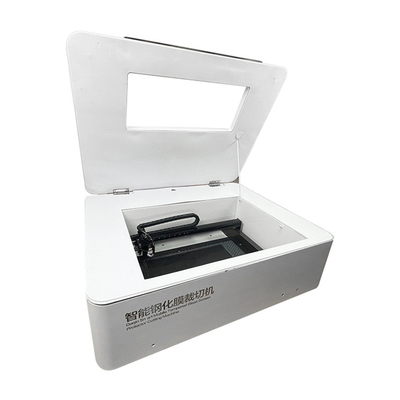

All accessories( air pump,water pump, exhaust fan) all built-in , more neat and saves space.
We have professional tech team for templates making, accurate and various.
Support multiple templates cutting at the same time make cutting more efficient.
You can edit your own templates, such as templates for camera, car mirrors,UAV and so on.
The software includes nearly all mobile phone brands in markets
which supports update new models timely.
Materials Details:
| Antishock tempered glass film 9H |
Highly recommended thick glass layer, smooth surface
and anti-drop;super strong adsorption, easyto paste.
The thickness of the glass layer is 0.2mm, which is
two-thirds of the thickness of the used layer; 4 layersin
total, the surface is blue; the bottom layer is
transparent (two layers).
|
| Black Tempered Glass Film |
1. Good fit, fast exhaust, no white edge.
2. It can be bent at 360°, with high light transmittance
and no broken edges.
3. Advanced nano-explosion-proof technology, up to
9H resistant to explosion and explosion, strong impact
resistance.
4. Anti-fingerprint waterproof treatment, touch effect
is more sensitive.
5. using layer thickness 0.3MM
|
| YT TPU protection film |
This product is a HD curved screen protector, the
middle matte is the use layer, the surface is a yellow
protective layer, and the bottom layer is transparent and
hard. The intermediate HD layer thickness is
0.2mm, which can protect the mobile phone with the
whole machine. It is strong in glue, suitable for large
radius mobile phone screen, without warping and
curling, perfect fit;summer explosion, anti-glare anti
fingerprint, not afraid of sweat. Game Player preferred.
|
Main Features
1. The machine is operated by software.
2. Software includes more than 6000 phone templates (Samsung, Iphone, Huawei, Xiaomi etc.)
3. Free Update software every month (add latest models).
4. Can add any phone models, any sharps by yourself. If you needed, also can contact our after sales team for supporting.
5. It can cut nano glass, TPU, hydrogel films for mobile phone, Ipad, tablet, watches etc.
6. We provide raw materials.
7. One A4 sheet can cut about 6 pieces protectors for mobile screen, one protector cost price between $0.08-$0.12.
8. One time can cut 1 piece protector. One day produces 600 pieces minimum.
9. This design with mobile control, and all built-in spare parts, suitable to use in shopping mall.
FAQ about Mobile tempered glass screen protector Laser Cutting Machine
How about the Warranty and Training for laser mobile screen protector cutting machine ?
* The warranty for the machine is 1 year.
* The machine has been tested by professionals and has 18 years of practical application.
It's with high stability and low fault rate.
* Detailed training video for the machine and software will be provided.
Professional after-sale service is available by remote assistance and video chatting.
The operation is easy to learn, everyone can be a master.
How about the delivery time and shipping way for tempered glass cutting machine?
* Since the packing is with small volume and light weight,
usually the goods will be shipped by international express company, such as DHL, FEDX...
need about 2 days for preparing and packing the goods.
